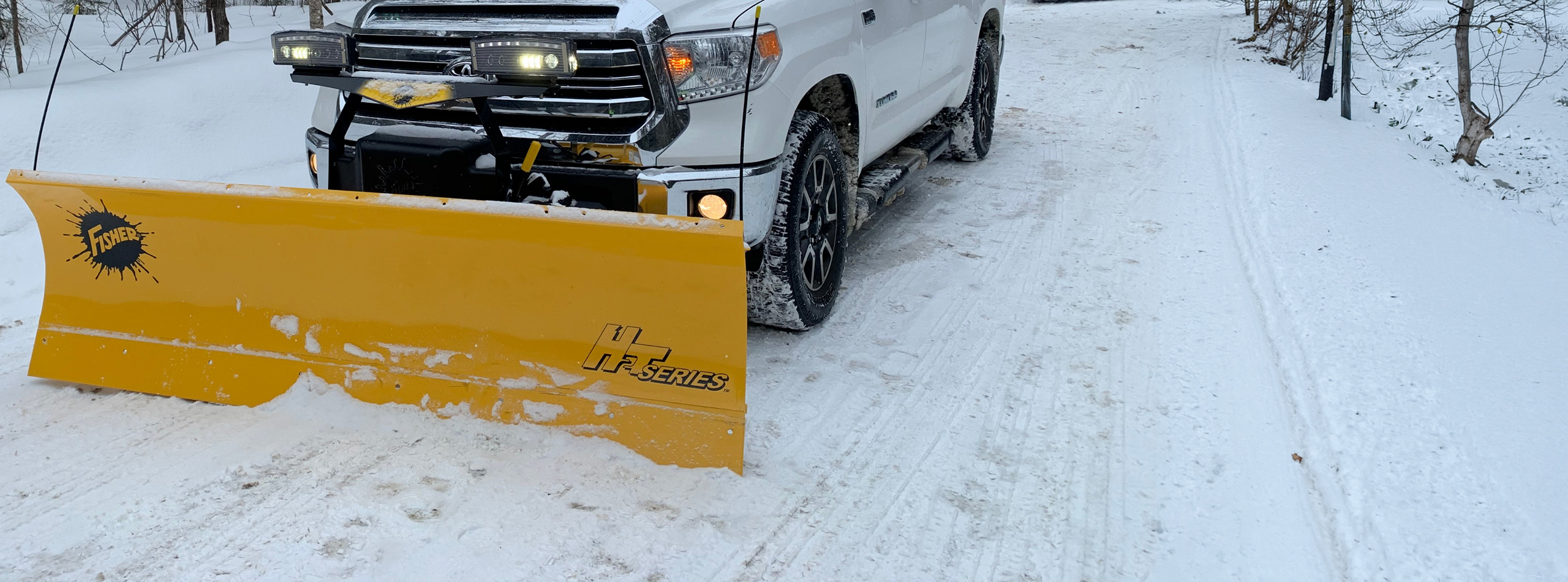

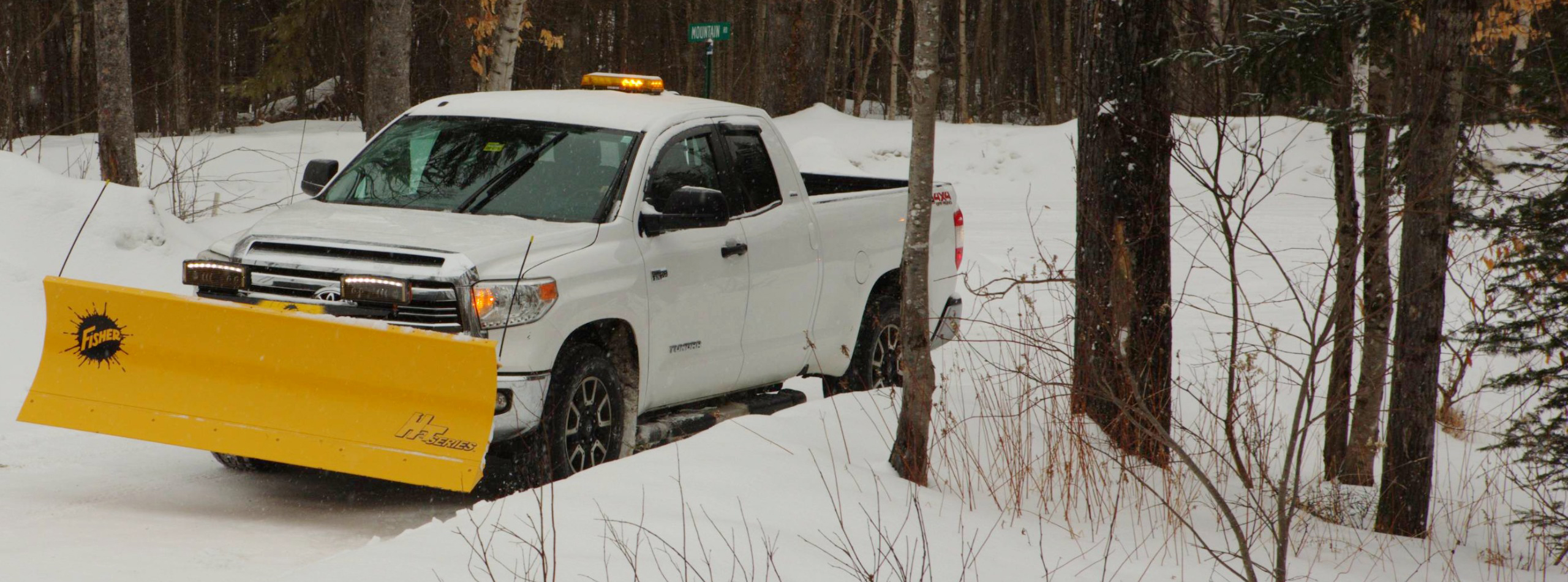

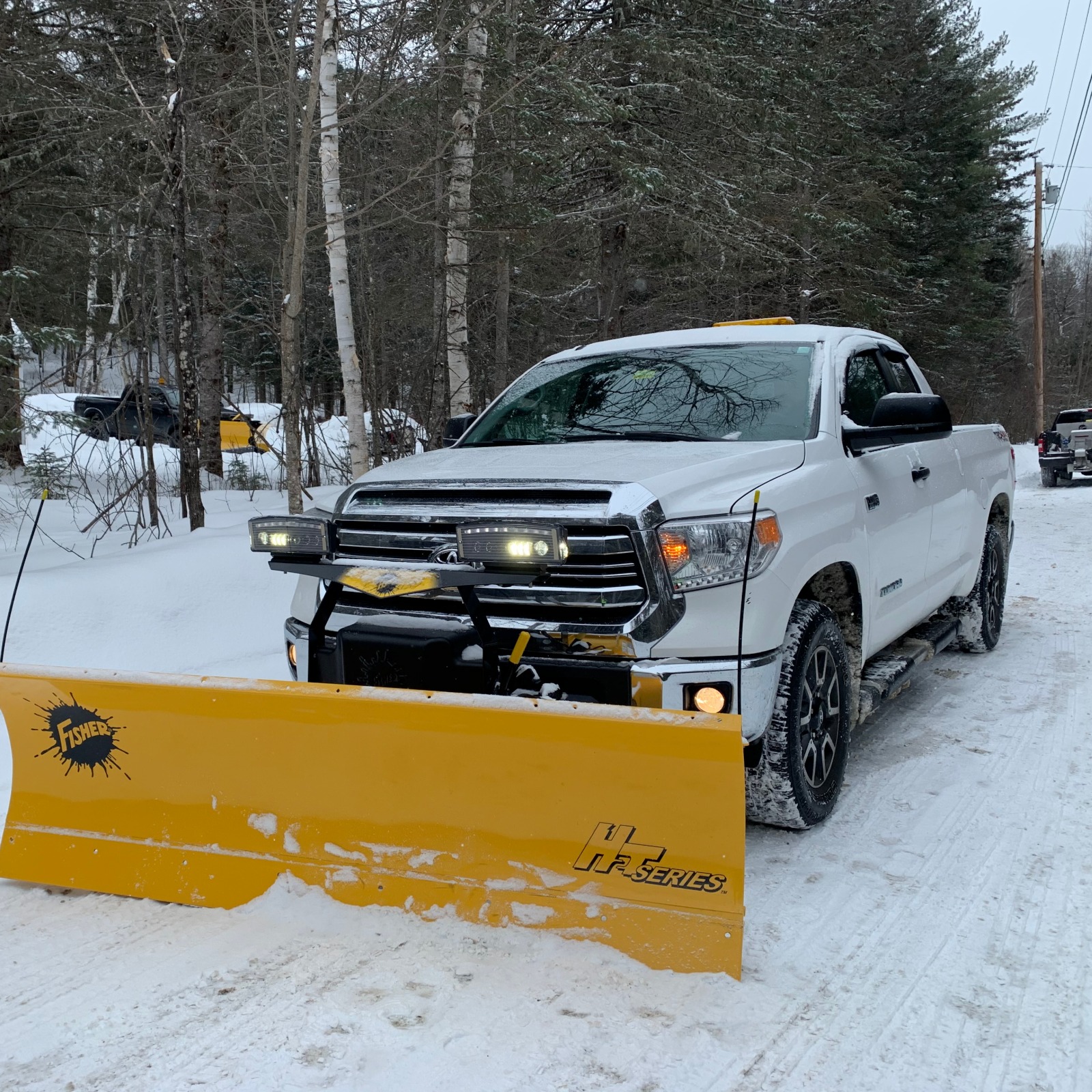

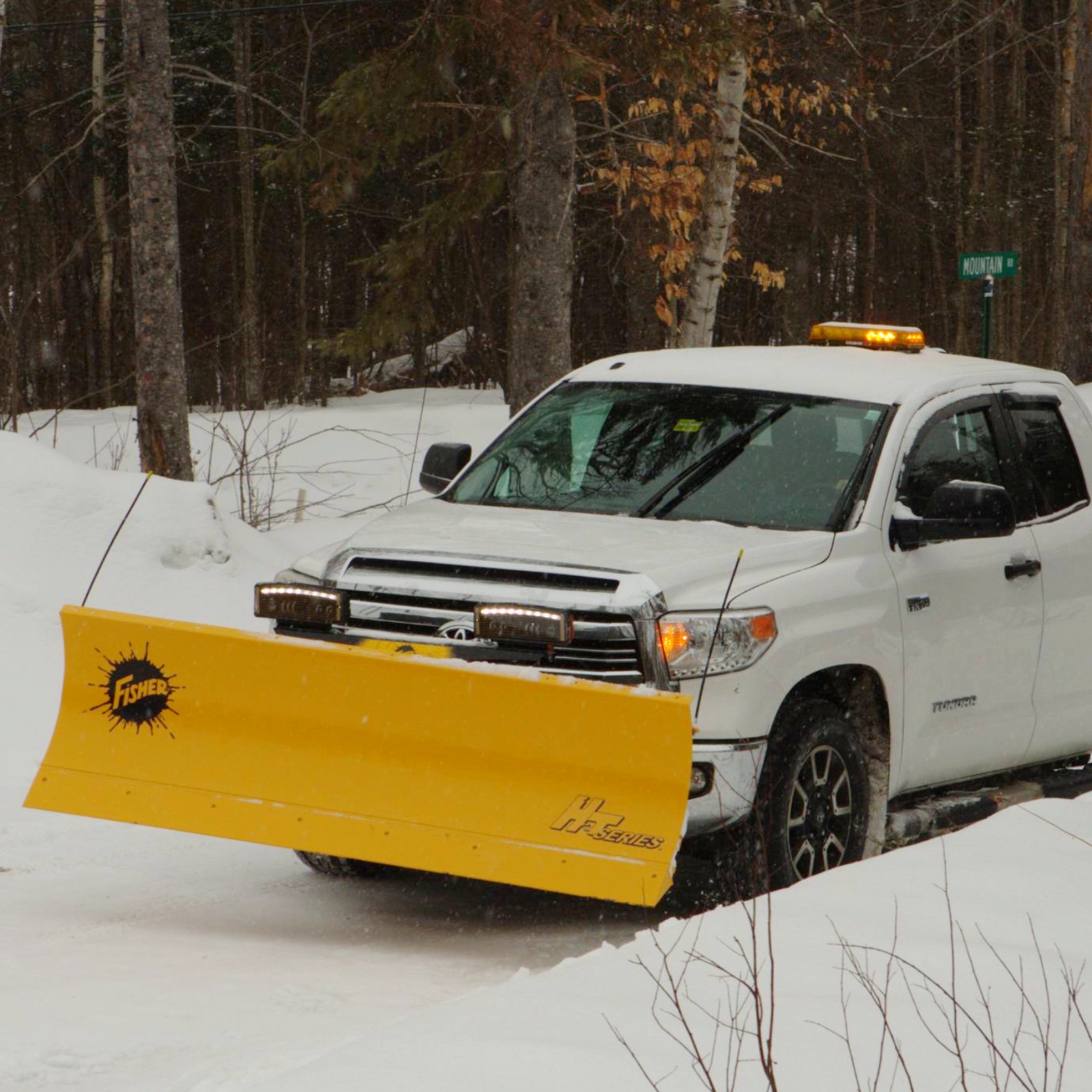

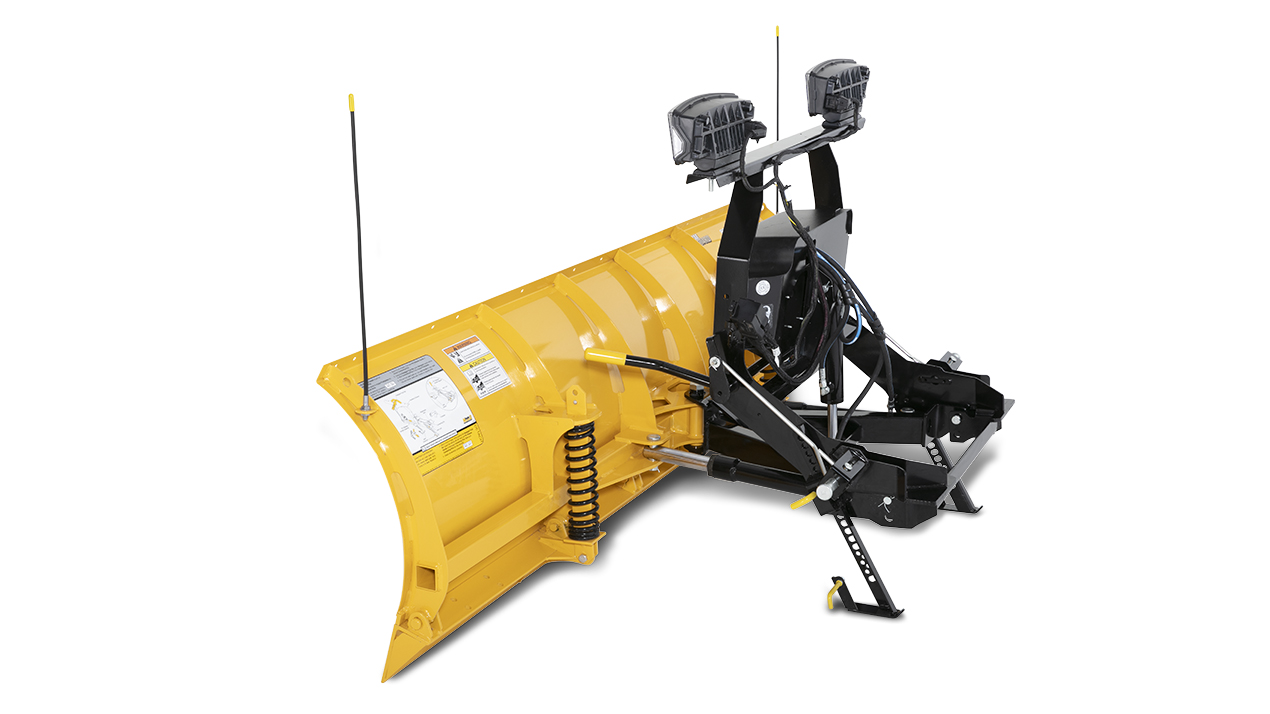

HT Series™
STRAIGHT BLADE SNOWPLOW
Quick Specs
- 7'6" Blade Width
- 417 lbs Approx. Weight
- 6'7" Plowing Width (Full Angle)
- Fits: Half-Ton, Class 1 Trucks & Tractors
- Moldboard: Powder-Coated Steel
Verify compatibility and part number information
PROFESSIONAL GRADE PERFORMANCE, LIGHT-DUTY APPLICATIONS
When winter hits, your half-ton truck is ready to get to work. The FISHER® HT Series™ snow plow is a full-size, full-featured plow that brings professional-grade power to your personal and light commercial needs. We designed it specifically for lighter trucks, giving you the strength you need without weighing you down.
Unique Features
Blade Construction
- 27″ tall moldboard available in 7′6″ width
- 14-gauge, powder coated steel
- ⅜” x 6″ high carbon steel cutting edge comes standard to increase the wear resistance of your blade
- 75-degree attack angle ensures a clean scrape and back drag
- Easy accessory installation with pre-punched blade

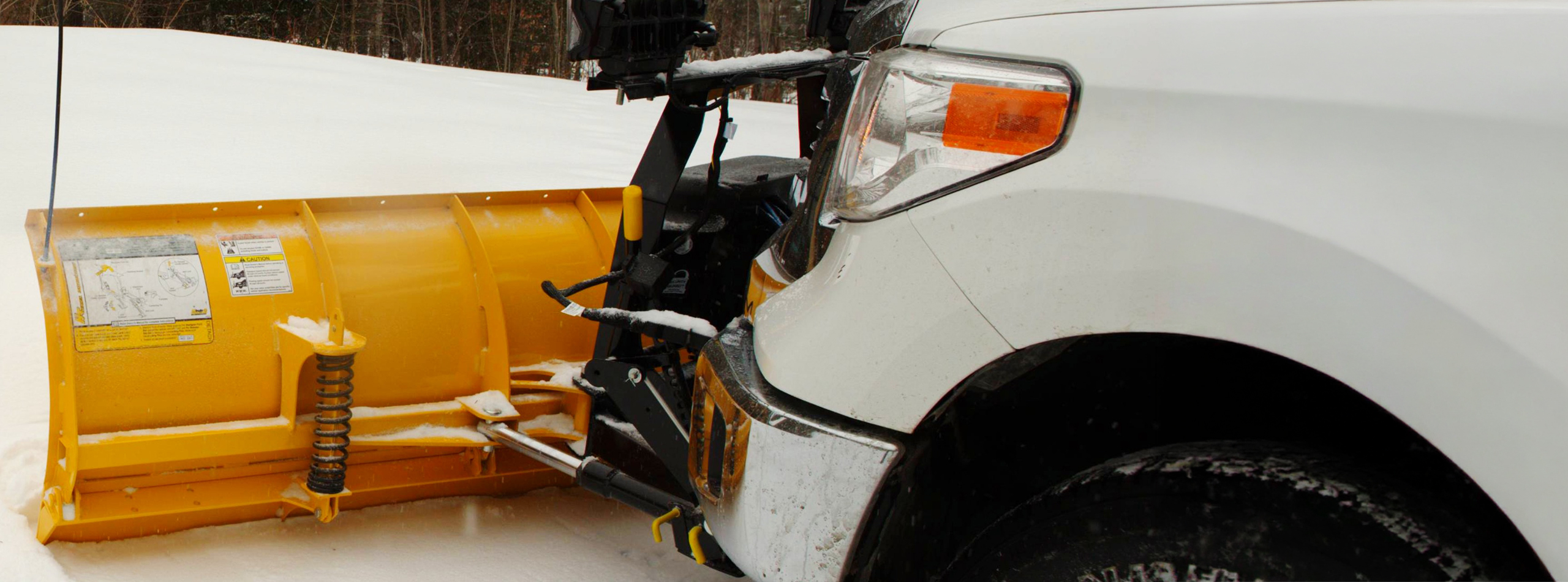

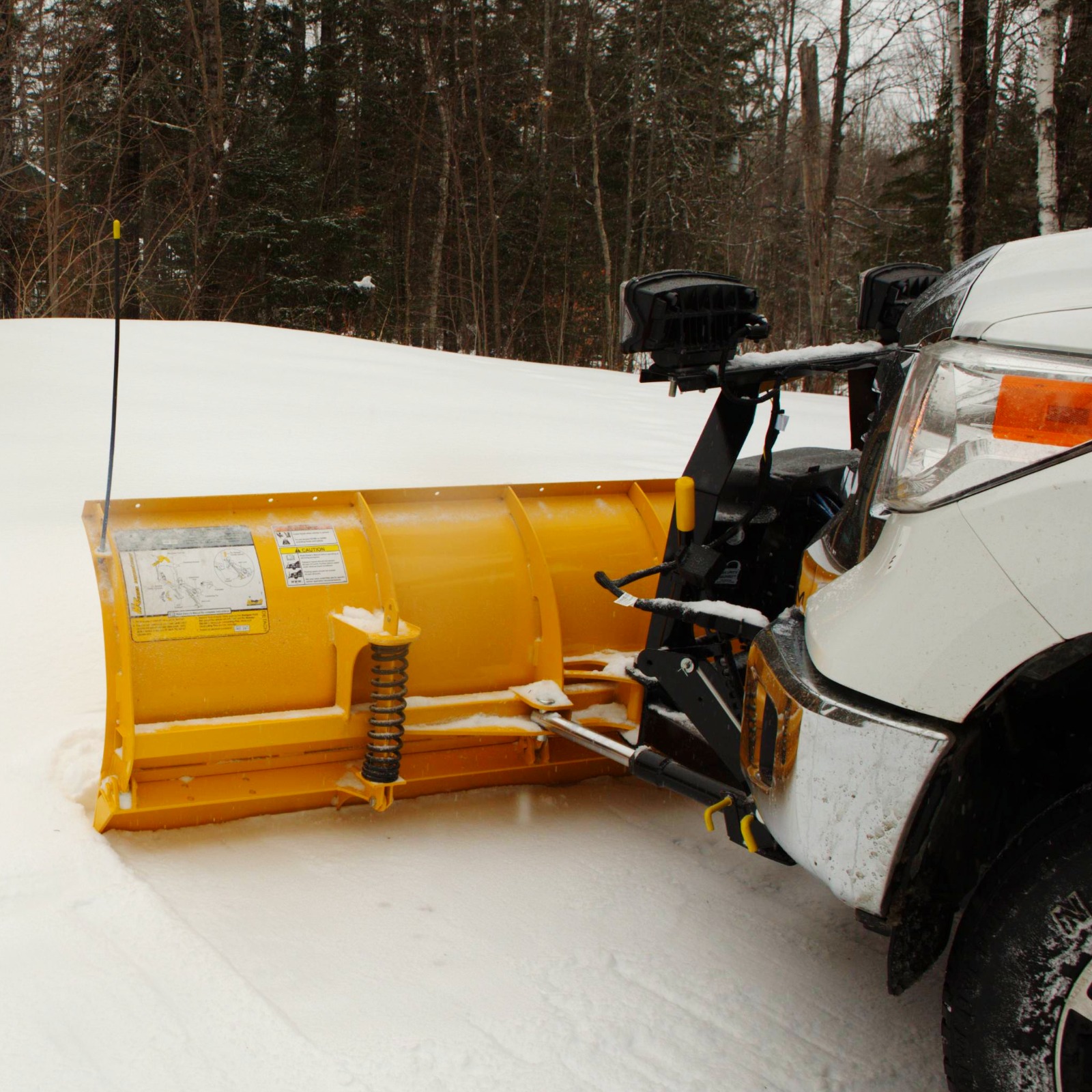

Structural Reinforcement
- 6 vertical ribs eliminate blade twisting and provide exceptional torsional strength
- Full-length horizontal base channel provide extra rigidity and strength to the core of the plow blade
- 1” diameter pivot bushing secures the plow in place for proper alignment and reduces stress on the plow assembly

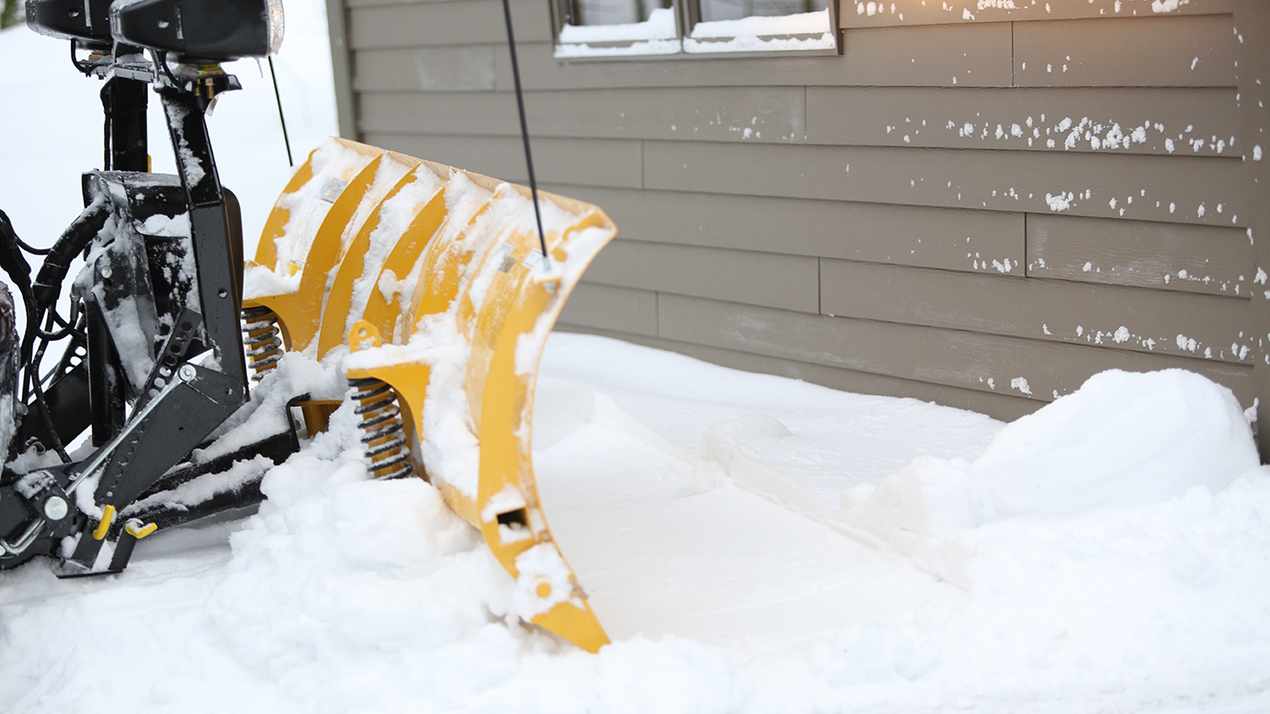

Scrape Lock
The FISHER® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
Universal Features
Accessories
CURB GUARDS (PAIR)
Part NumbersPart Number
Curbing can come out of nowhere sometimes. Protect your blade with a pair of genuine FISHER® curb guards. Constructed of abrasion-resistant material and designed to fit tight to the blade, these curb guards will allow you to plow along curbs with confidence and precision, without damaging your blade.
SHOE KIT
Part NumbersPart Number
Ideal for dirt or crushed stone road surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER® shoes are made of high-density polyurethane for longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation.
POLY SnoFoil®
Part NumbersPart Number
Blaze through deep snow with a genuine poly SnoFoil® from FISHER®. Made of heavy-duty polyethylene, this kit is durable and easy to install. The curved rigid design provides excellent snow rolling performance, ensuring that you have visibility while plowing regardless of the conditions.
10" RUBBER DEFLECTOR
Part NumbersPart Number
Dress up your blade and improve functionality with a genuine FISHER® rubber deflector. Made from 2-ply heavy-duty rubber and accented with the FISHER logo, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.
Specifications
| Specification | 69400 |
|---|---|
| Blade Width | 7'6" |
| Approx. Weight | 417 lbs |
| Plowing Width (Full Angle) | 6'7" |
| Blade Height | 27" |
| Blade Thickness | 14 ga |
| Lift Cylinder | 2" x 6¾" |
| Angling Rams | 1½" x 8" |
| Cutting Edge | ⅜" x 6" Steel (Standard) |
| Specification | 69400 |
|---|---|
| Moldboard Options | Powder-Coated Steel |
| Blade Type | Straight Blade |
| Vehicle Compatibility | Half-Ton, Class 1 Trucks & Tractors |
| Trip Springs | 2 |
| Ribs | 6 + Tube |
| Mount Type | Minute Mount® 2 |
