Low Profile

TAILGATE SPREADERS

CLEARLY BETTER

Low Profile

TAILGATE SPREADERS

CLEARLY BETTER

The Results Are Clear

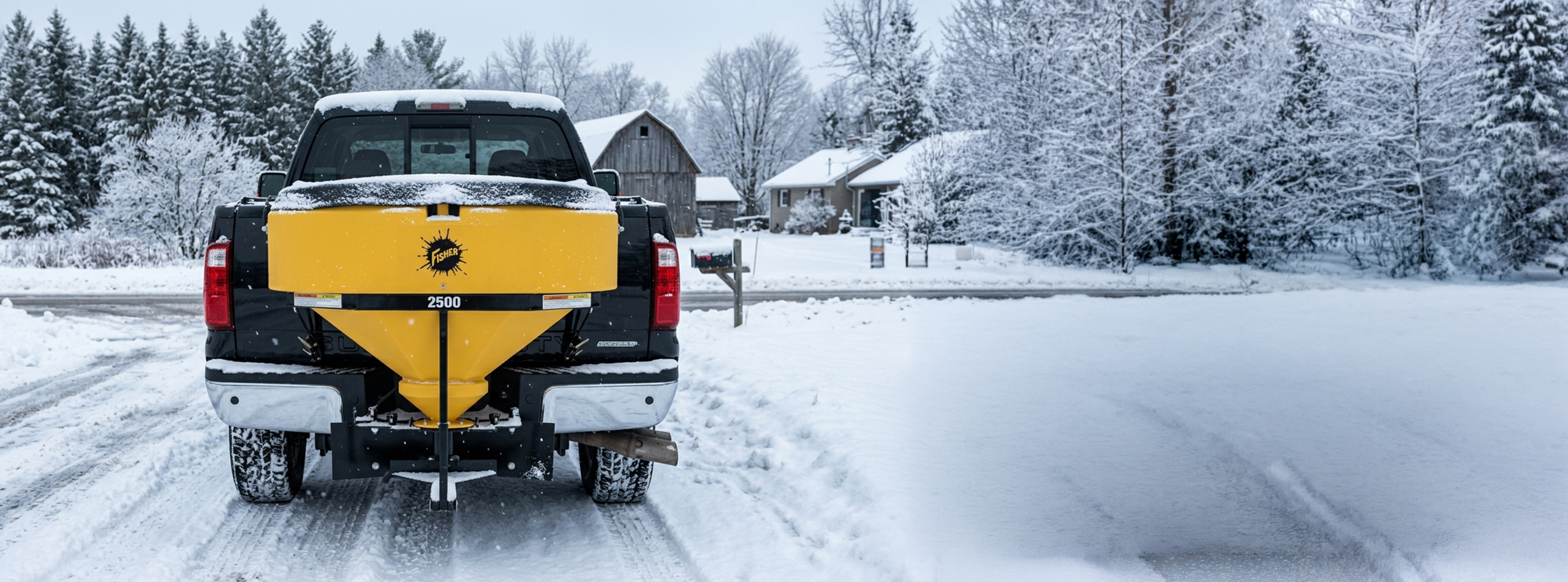

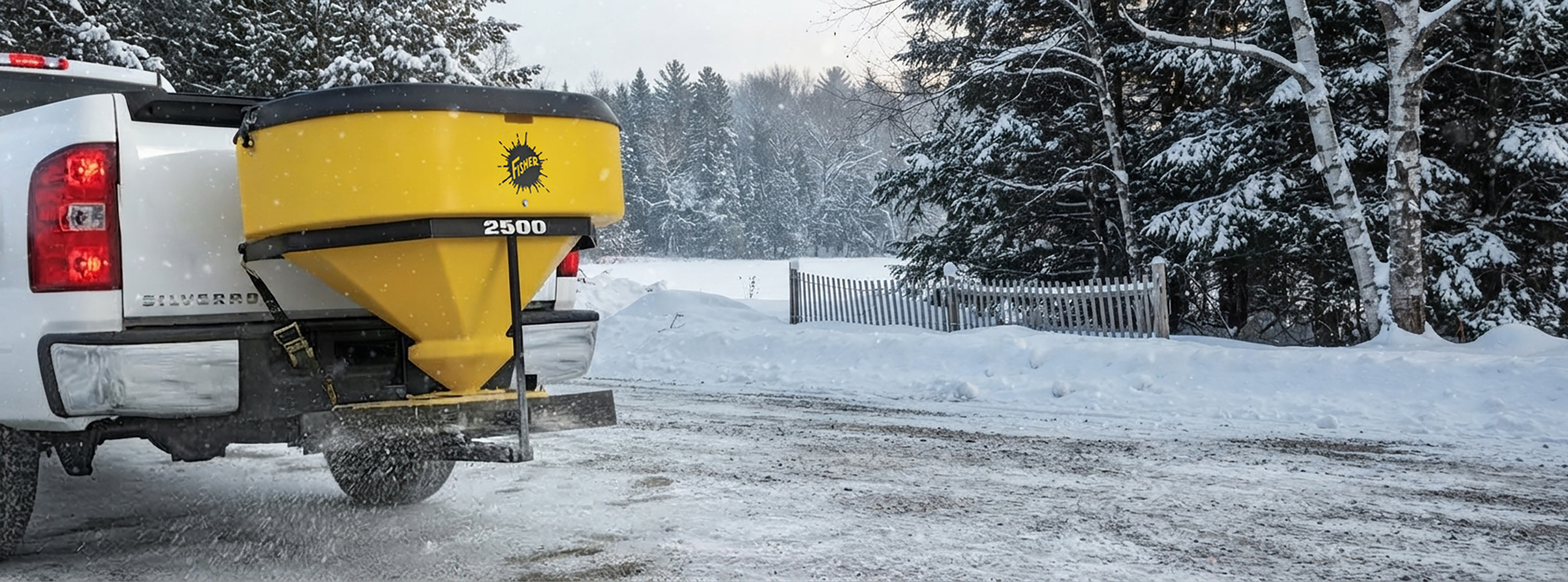

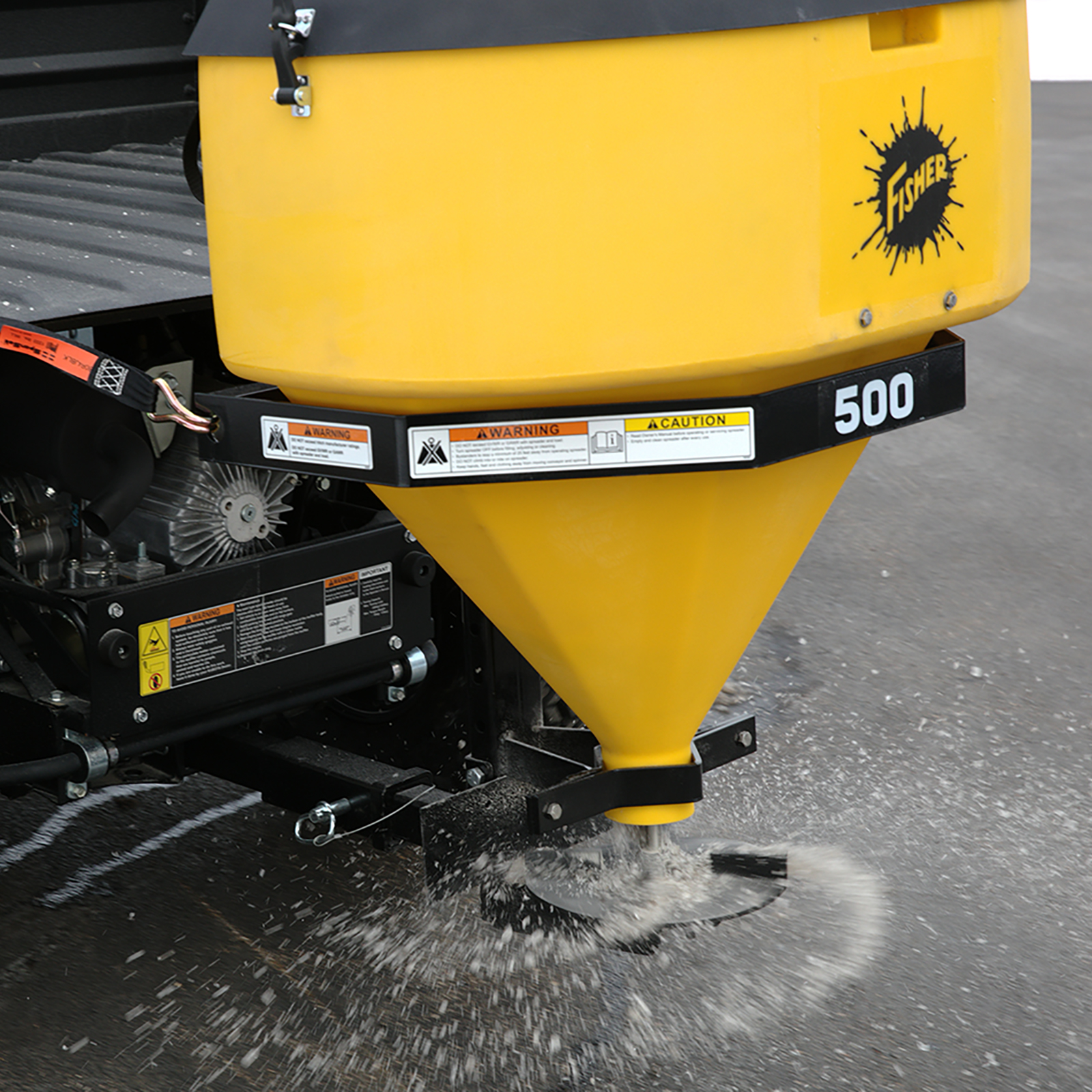

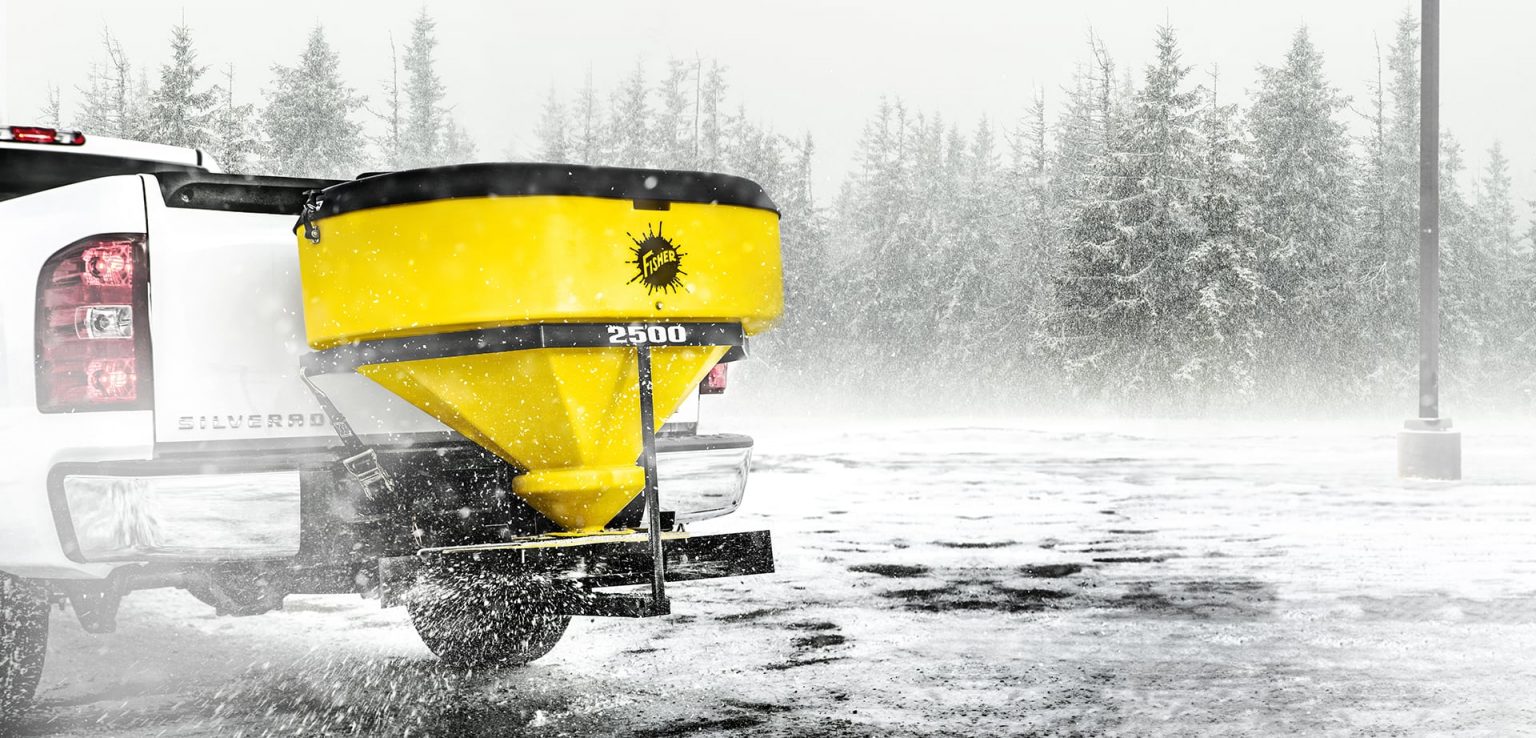

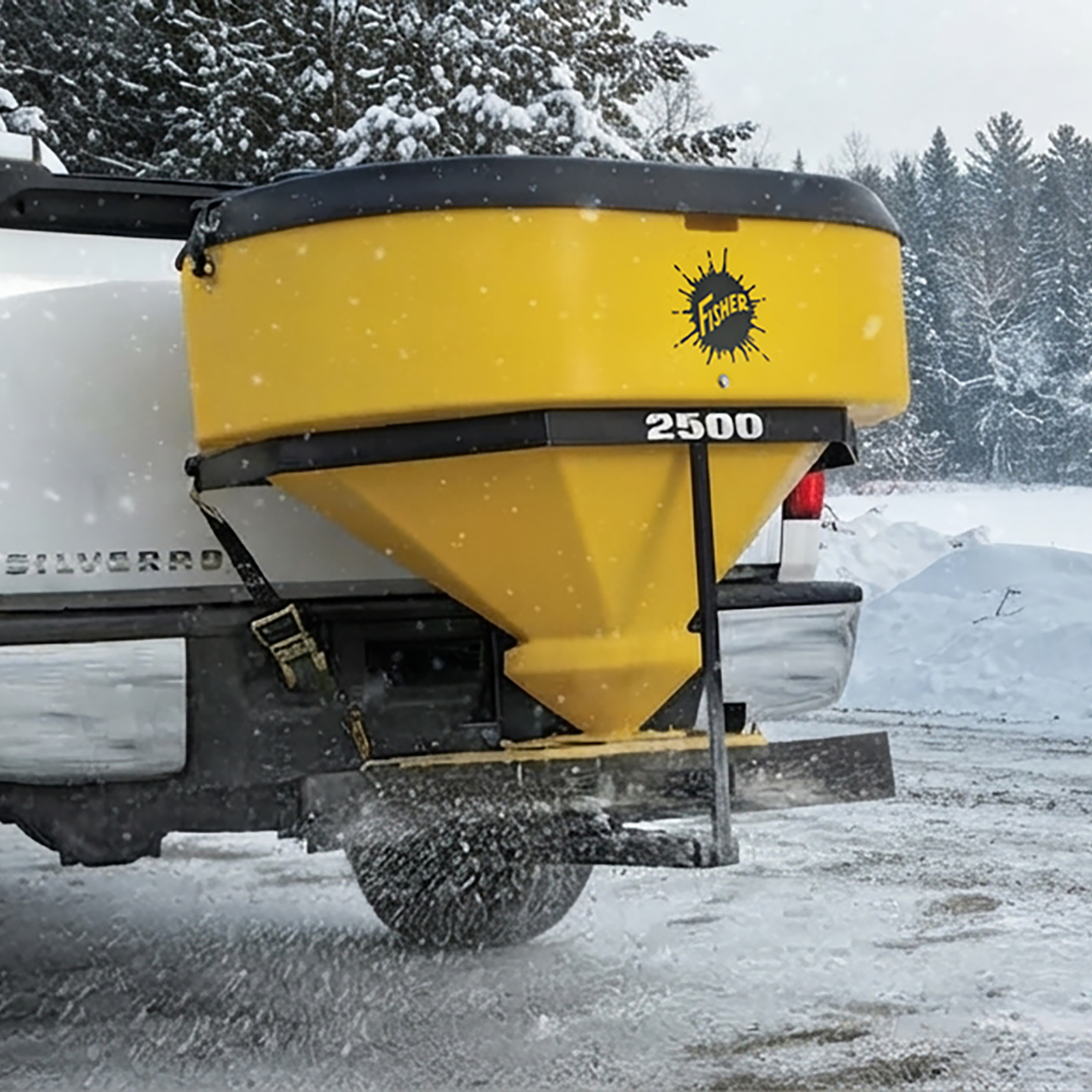

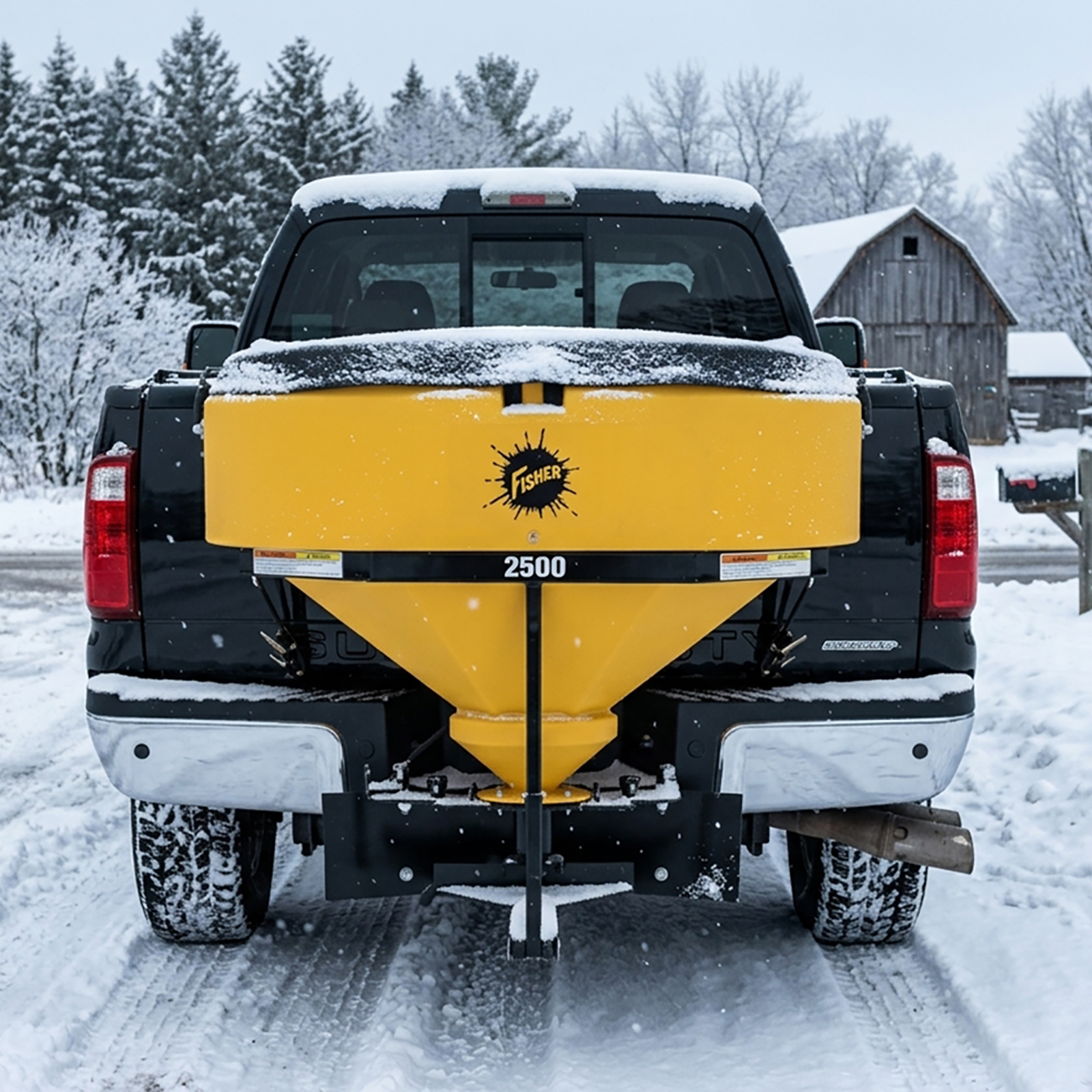

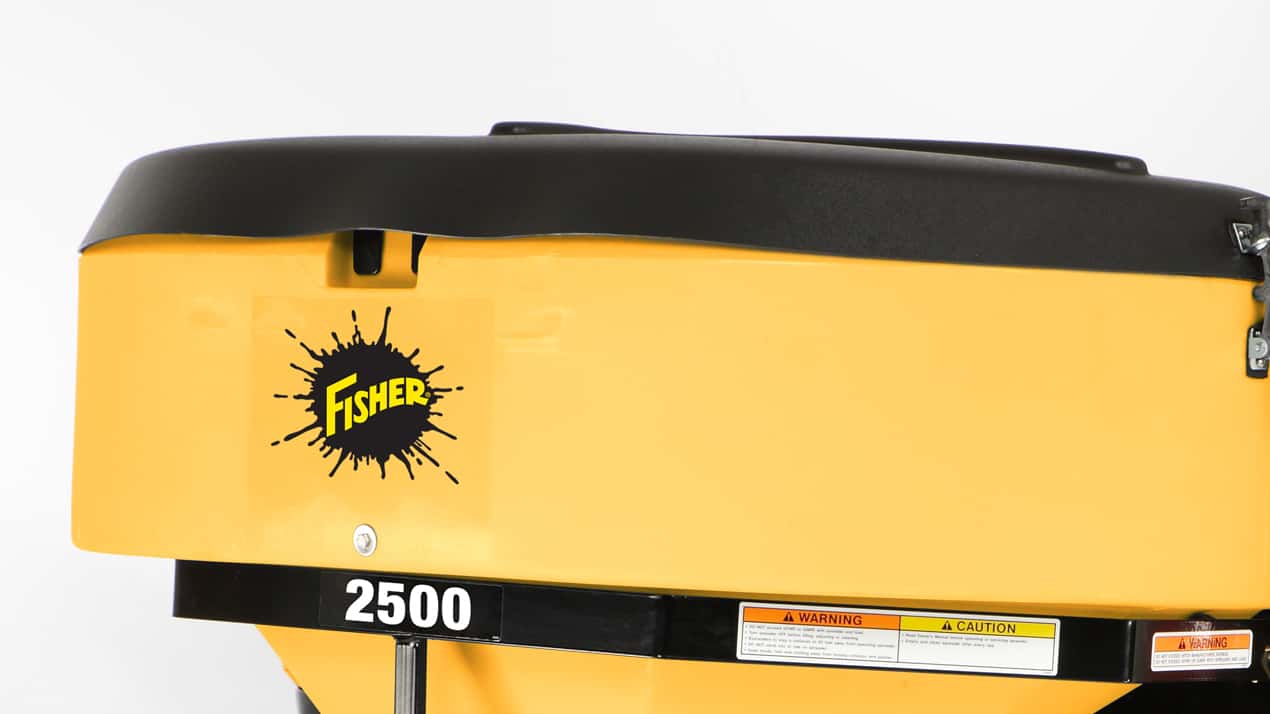

Designed for ice cold reliability, the FISHER® Low Profile tailgate spreaders provide a clear view from the cab when backing up. Perfect for spreading #1 rock salt, calcium chloride and other de-icing materials, these single-stage tailgate spreaders provide visibly better performance in an operator-friendly package.

Type of Spreader

Truck Tailgate
Share on facebook
Share
Share on twitter
Tweet

Featured Accessories

Top Screen

TOP SCREEN

The coated steel top screen helps break up large chunks of de-icing material during the loading process to help prevent clogging and bridging during spreader operation.
Adjustable Deflector

ADJUSTABLE DEFLECTOR

Redirect material onto the roadway and away from your vehicle by using an adjustable deflector that can be positioned in various directions.
5-Flight Auger

5-FLIGHT AUGER

Reduce spillage of finer grained material by utilizing a 5-Flight Auger. A tighter corkscrew design with 5 turns over the same distance as the standard 3.

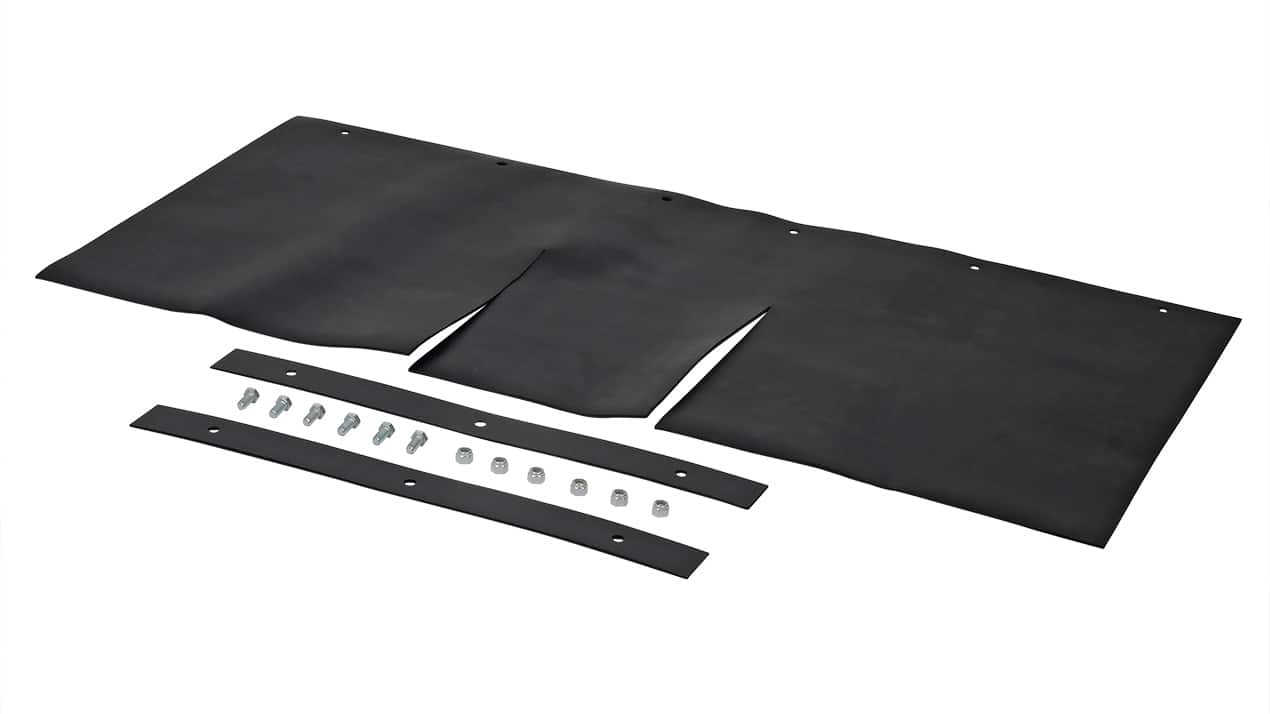

Truck Protector Flap

TRUCK PROTECTOR FLAP

A Truck Protector Flap is an adjustable barrier bolted to the back of your tailgate that prevents salt from getting thrown into the truck bed, reducing the opportunity for corrosion.
Spreader Control Plate

SPREADER CONTROL ADAPTER PLATE

Gain the flexibility and easy installation benefits of the cup holder control mount with every spreader installation using the new Spreader Control Adapter Plate Kit. Kit contains a durable metal mounting plate and hardware.

Control Cup Holder Mount not included, order separately (#82006).

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders (plow control featured in image). It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning. Now compatible with spreader controls using a Spreader Control Adapter Plate, order separately (#82018).
Dielectric Grease

DIELECTRIC GREASE

Keep your FISHER® plow running strong. Apply our specially formulated dielectric grease after each use to prevent corrosion caused by electrolysis and highly corrosive de-icing agents.
Freeze Guard Grease

FREEZE GUARD™ GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD Grease is available in cartridges, pails, totes and drums.
Next
Previous

Specifications

ModelsModel 500Model 1000Model 2500
Capacity5.00 cu ft8.00 cu ft8.50 cu ft
Capacity0.14 cu m0.23 cu m0.24 cu m
Hopper ConstructionPolyethylenePolyethylenePolyethylene
Hopper ConstructionPolyethylenePolyethylenePolyethylene
Dimensions Overall (LxWxH)21" x 39" x 34"19 ½" x 50 ½" x 35"25" x 50" x 42"
Dimensions Overall (LxWxH)53.34 cm x 99.06 cm x 86.36 cm49.53 cm x 128.27 cm x 88.90 cm63.5 cm x 127.00 cm x 106.68 cm
Approx. Weight (Empty)75 lb With Mount105 lb Without Mount131 lb With Mount
Approx. Weight (Empty)34 kg With Mount47 kg Without Mount59.4 kg With Mount

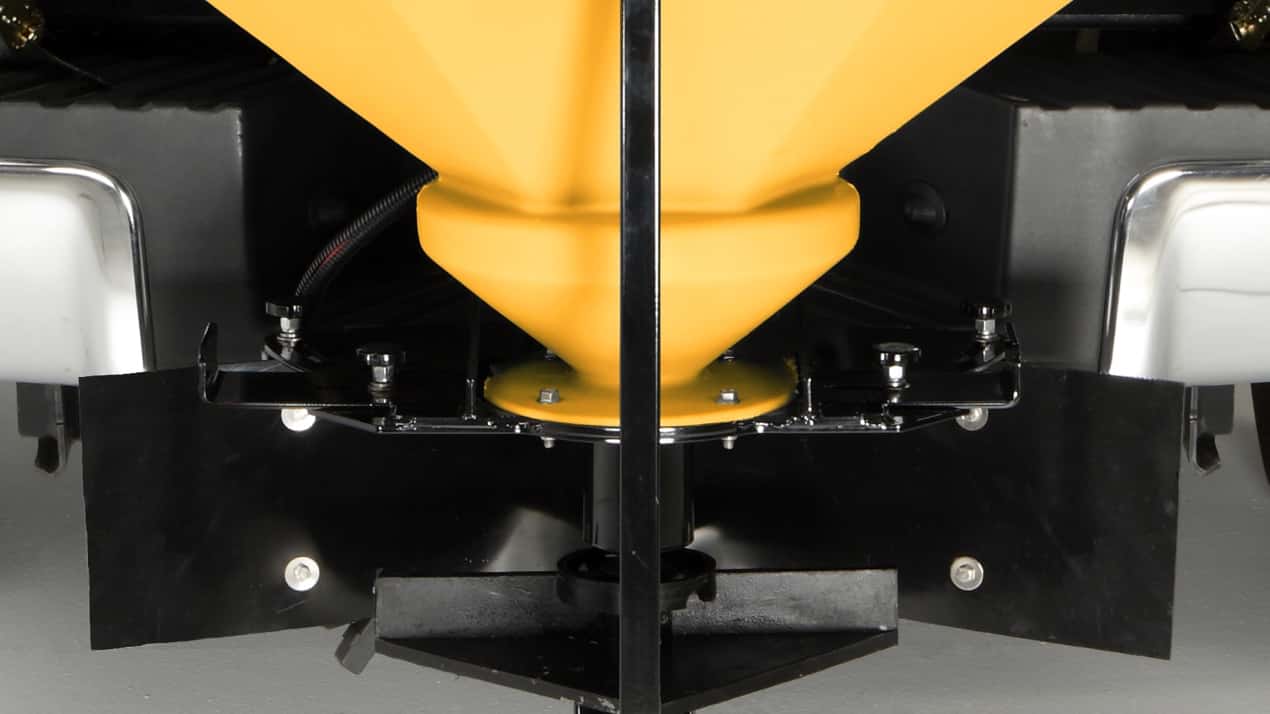

Motor⅓ HP⅓ HP⅓ HP
Motor⅓ HP⅓ HP⅓ HP
Auger (Diam. x Length)2 ⅝" x 6"2 ⅝" x 6"2 ⅝" x 9"
Auger (Diam. x Length)6.68 cm x 15.24 cm6.68 cm x 15.24 cm6.68 cm x 22.86 cm
Spinner Size10"10"15"
Spinner Size25.40 cm25.40 cm38.10 cm
Spreading WidthUp to 30'Up to 30'Up to 30'
Spreading Width0.91 m - 9.14 m0.91 m - 9.14 m0.91 m - 9.14 m
MaterialsSaltSaltSalt
MaterialsSaltSaltSalt
Vehicle ApplicationVehicles with Class III HitchFull Size Trucks (Over 6,000 lb GVWR)Full Size Trucks (Over 6,000 lb GVWR)
Vehicle ApplicationVehicles with Class III HitchFull Size Trucks (Over 6,000 lb GVWR)Full Size Trucks (Over 6,000 lb GVWR)

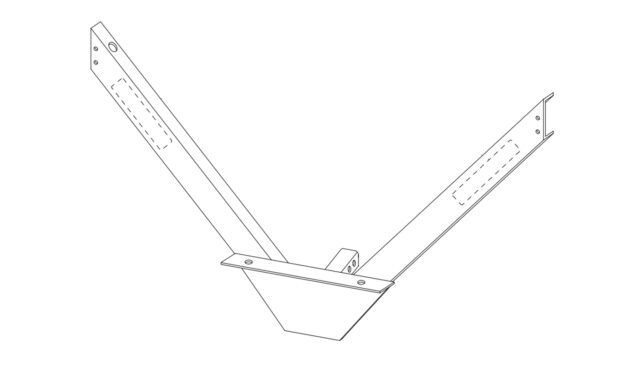

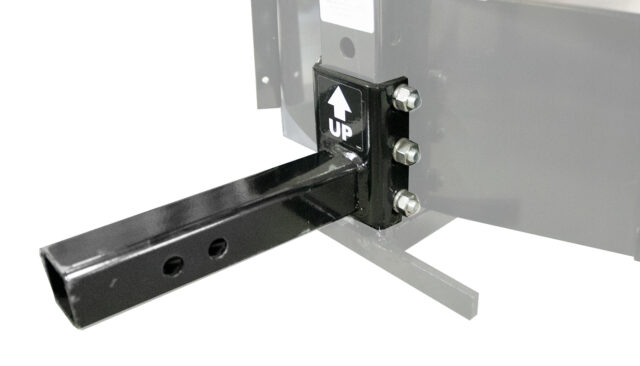

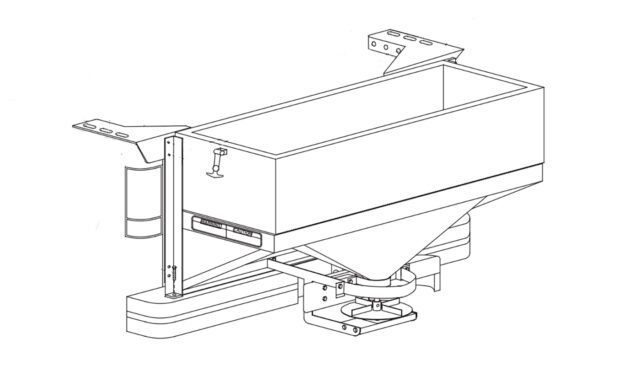

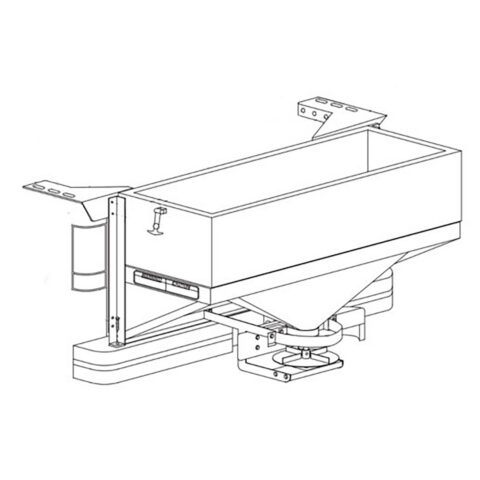

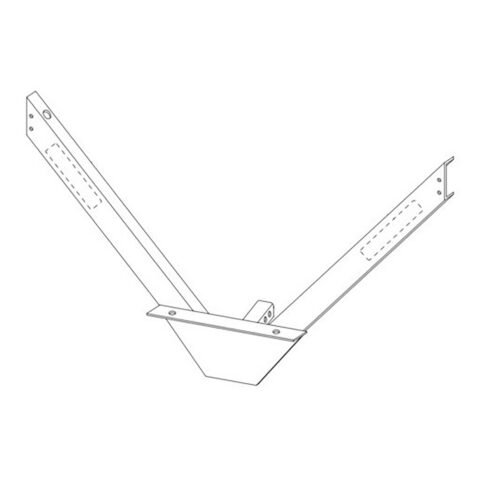

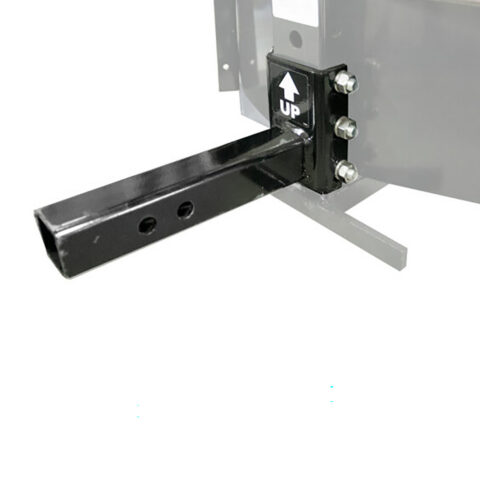

Available MountsStandard Class III Receiver Hitch MountOptional Fixed Mount, Class IV Hitched Mount, Dual Swing MountStandard Class IV Hitch Mount
Available MountsStandard Class III Receiver Hitch MountOptional Fixed Mount, Class IV Hitched Mount, Dual Swing MountStandard Class IV Hitch Mount

DOES THIS SPREADER FIT MY VEHICLE?

Product Literature

XV2

V-Plow Snowplow

XtremeV

V-Plow Snowplow

XRS, HDX & HD2

Snowplow Skid-Steer

XLS

Winged Snowplow

WB-160D & WB-100B

Sidewalk

TRAILCOMMANDER 250 & 600

UTV Tailgate Spreader

TRAILBLAZER Mid-Duty

UTV Snowplow

TRAILBLAZER Heavy-Duty

UTV Snowplow

Tractor Mount Kits

Tractor Snowplow

STORM BOXX (8′ & 10′)

Snowplow Pusher

STORM BOXX (12′, 14′ & 16′)

Snowplow Pusher

Storage Containers

Sidewalk

STEEL-CASTER (1.5 – 6.0 cu yd)

Truck Bed Spreader

STEEL-CASTER (0.35 cu yd)

UTV Bed Spreader

STEEL-CASTER (0.35 & 0.7 cu yd)

Truck Bed Spreader

SS-120 Sidewalk Sprayer

Sidewalk

SPEED-CASTER 525 & 900

Truck Tailgate Spreader

SPEED-CASTER 525

UTV Tailgate Spreader

SD Series

Straight Blade Snowplow

RB-400 Rotary Broom

Sidewalk

QUICK-CASTER 300W

Truck Tailgate Spreader

QUICK-CASTER 300W

UTV Tailgate Spreader

Pusher Shovels

Sidewalk

Pre-Wet System

POLY-CASTER UTV

UTV Bed Spreader

POLY-CASTER

Truck Bed Spreader

Low Profile 500, 1000 & 2500

Truck Tailgate Spreader

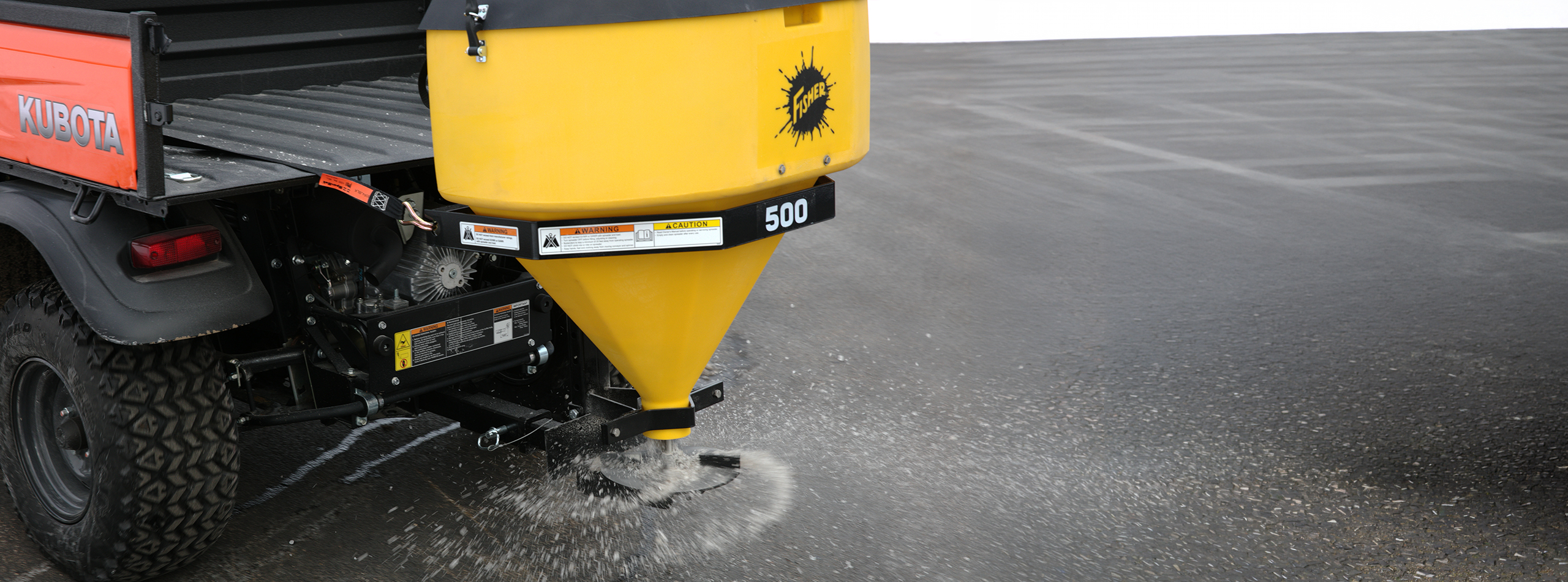

Low Profile 500
