V-Plow

Tougher Than Winter

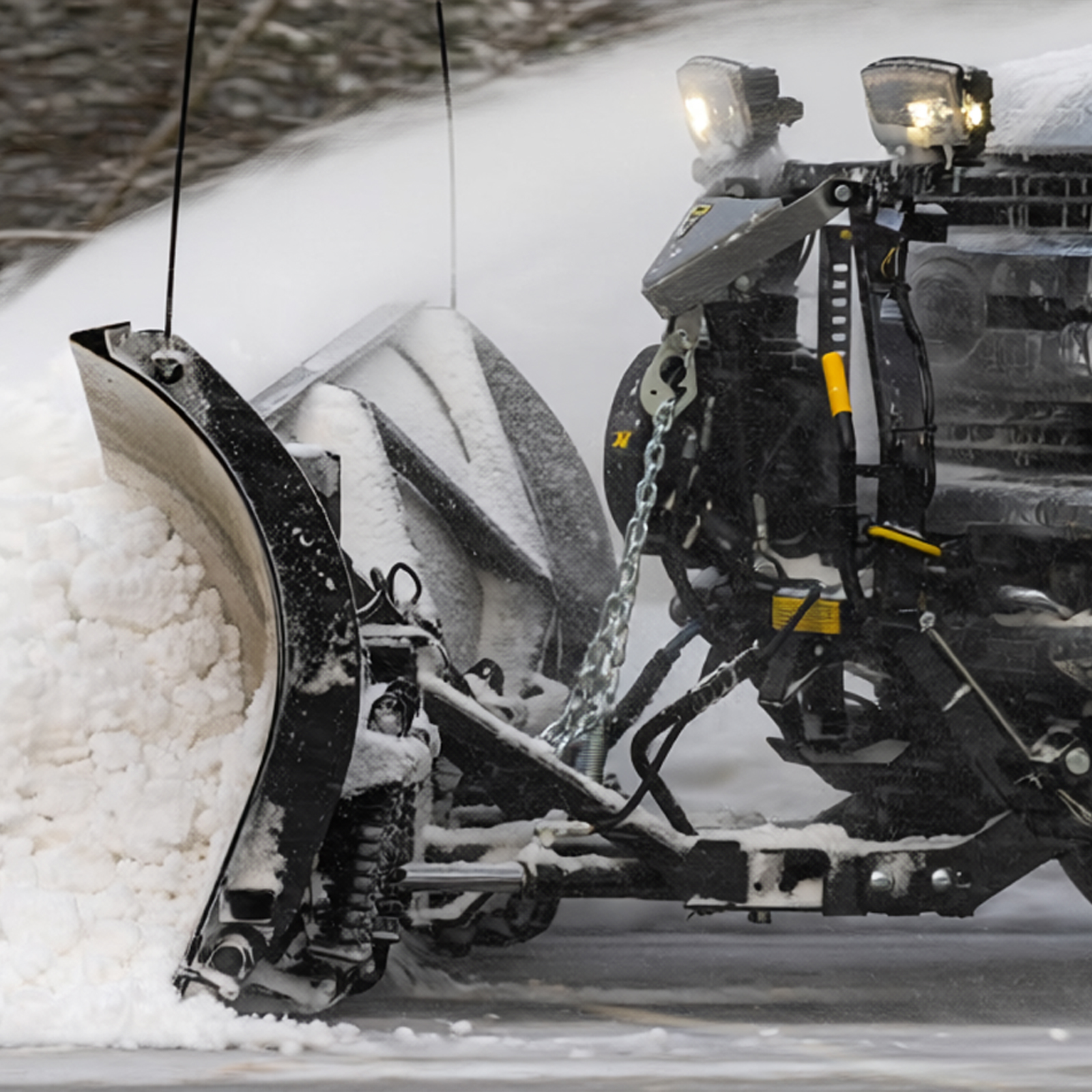

When winter gets tough, get even tougher with the FISHER® XV2 v-plow. Built to power through any storm, the FISHER XV2 v-plow comes equipped with extreme flared wings—up to 45″—and double-acting cylinders to easily handle anything thrown in its path. Plus, it’s qualified for vehicles up to Class 6, so it’s as versatile as it is hardworking.

Type of Snowplow

V-Plow

XV2™

Unique features

Previous Next

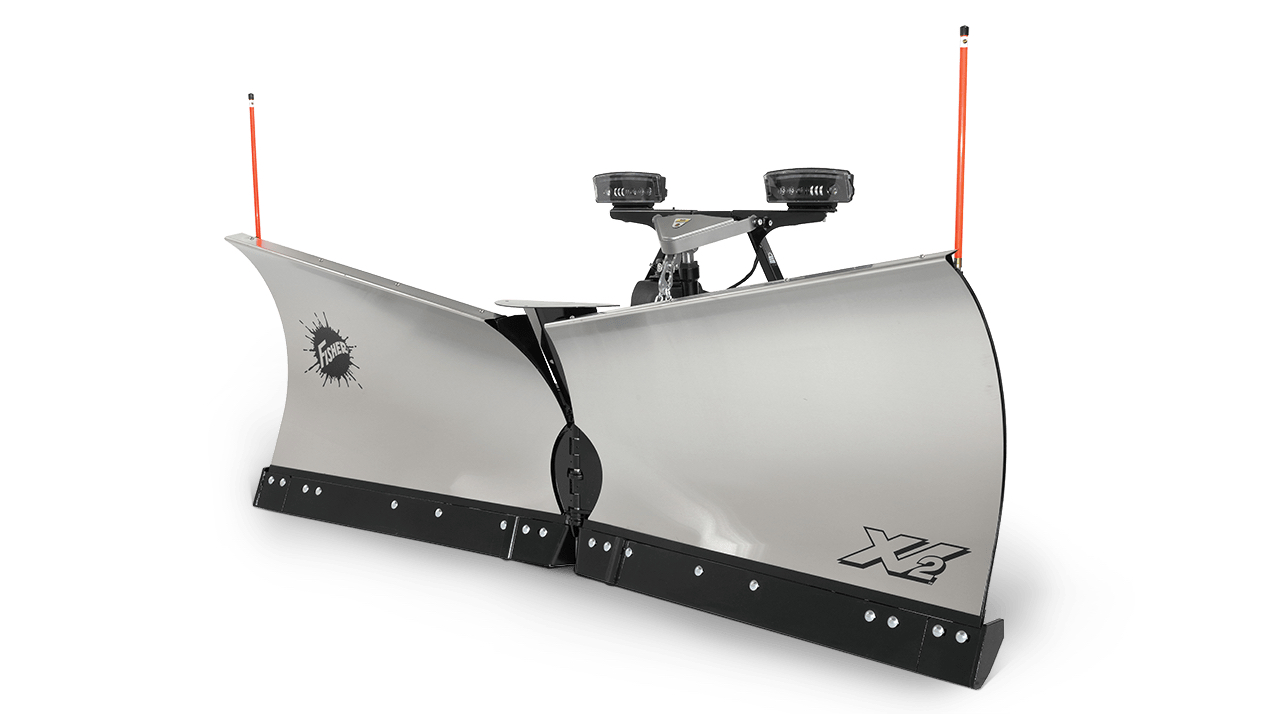

Plow Blade Construction

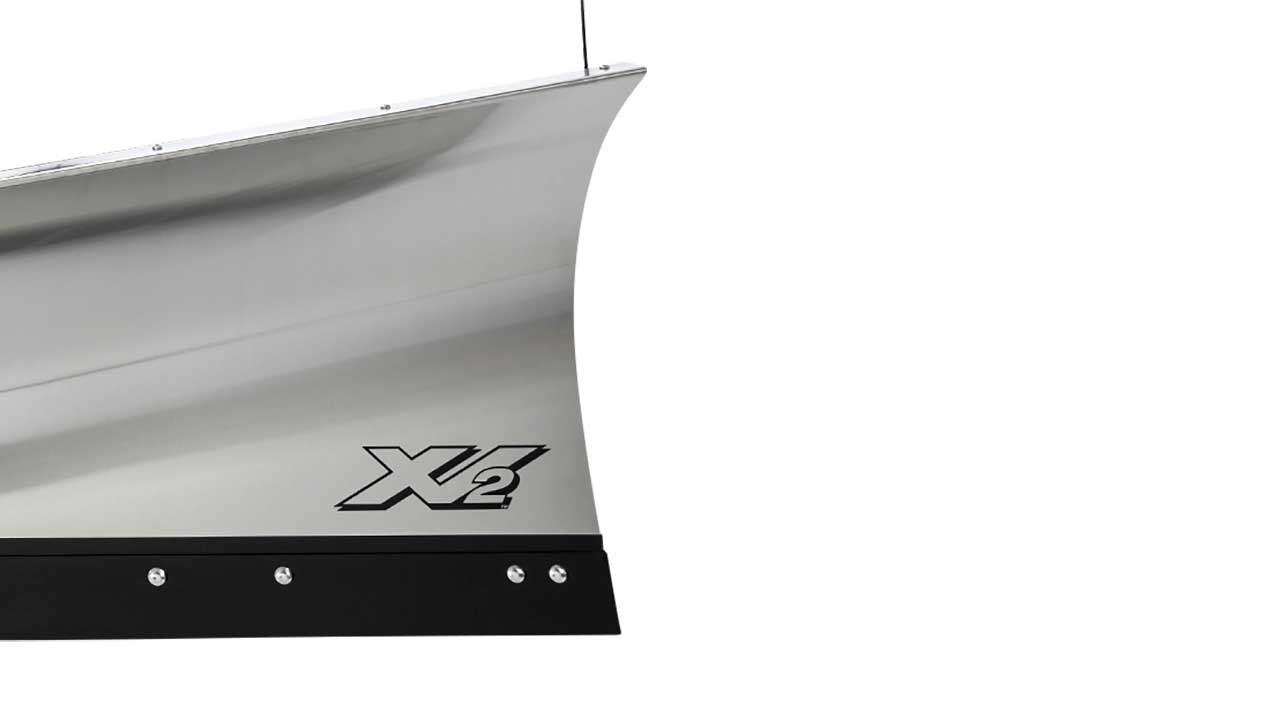

The XV2 v-plow features extreme flared wings that soar from a 35" center height up to 45" at the outer edge on 10' 6" models. The XV2 v-plow is available in premium, corrosion-resistant stainless steel in 7' 6", 8' 6", 9' 6" and 10' 6" widths, and in powder coated steel in 8' 6", 9' 6" and 10' 6" widths.

The blade comes standard with a 6", high carbon steel cutting edge, providing increased wear resistance and a clean scrape.

An aggressive, 70-degree attack angle enhances scraping and back dragging, making it ideal for asphalt and paved surfaces, and for scraping up ice and hard-packed snow.

Previous Next

Structural Reinforcement

The XV2 v-plow features our exclusive x-bracing design which is constructed from four vertical ribs and eight x-bracing ribs. Both the ribs and the boxed steel tube reinforce the blade for structural integrity and exceptional torsional strength.

A 1 ¼"-diameter, heat-treated steel center pin resides within a three-connection-point hinge for added strength and rigidity.

*9' 6" model shown

Previous Next

Reliable Hydraulics

We produce our own hydraulic system to ensure the highest standards of performance, quality and reliability, giving you a plow that is fast, responsive and built to last.

All critical hydraulic components are fully enclosed for protection from the elements.

Previous Next

Trip Protection

Each v-plow blade features independent trip-edge protection to get over bumps and hidden obstacles, whether in V, scoop, or straight-blade configuration, helping to protect the plow, the truck and the operator. Since only the bottom edge trips, snow stays in front of the blade, so you can keep on going without dumping the entire load of snow.

The FISHER® trip edge uses compression-type springs that never require adjustment and will not wear out like extension springs.

Previous Next

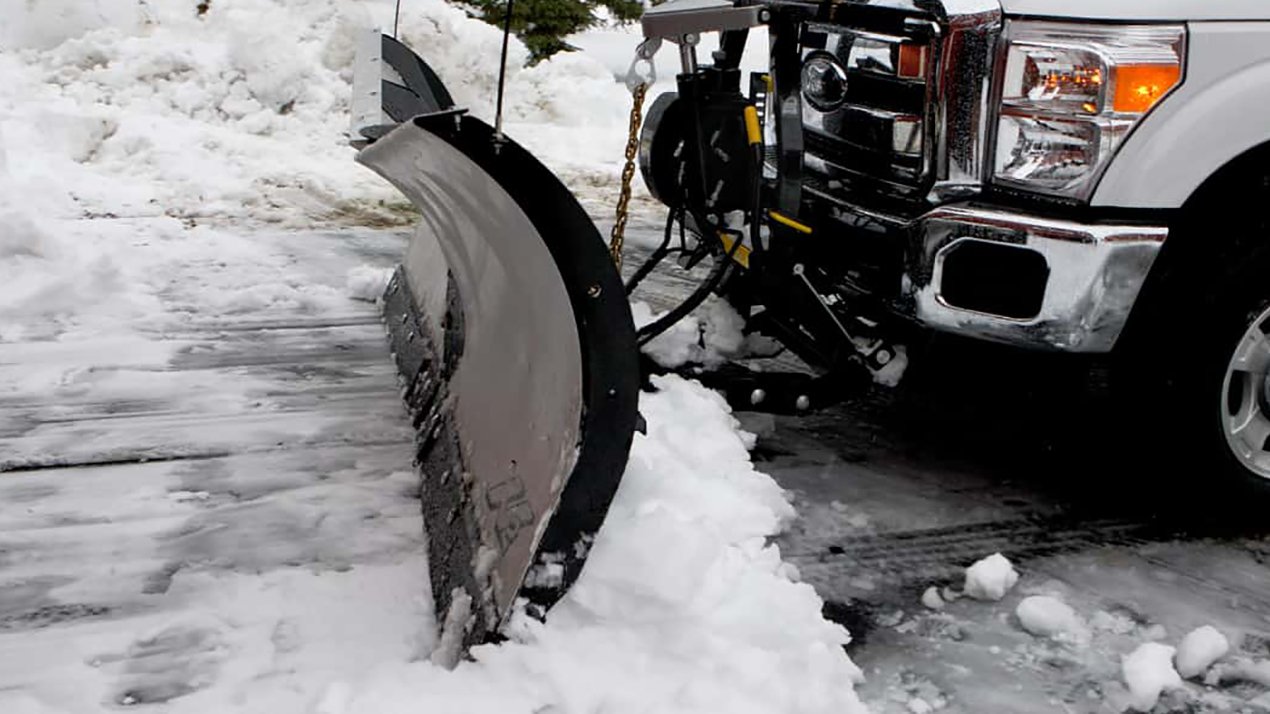

Double-Acting Cylinders

InstaLock double-acting cylinders allow the operator to lock the wings together to use the v-plow in straight blade mode with single button control. Double-acting cylinders also hold the wings firmly in place for clean, efficient back dragging.

Previous Next

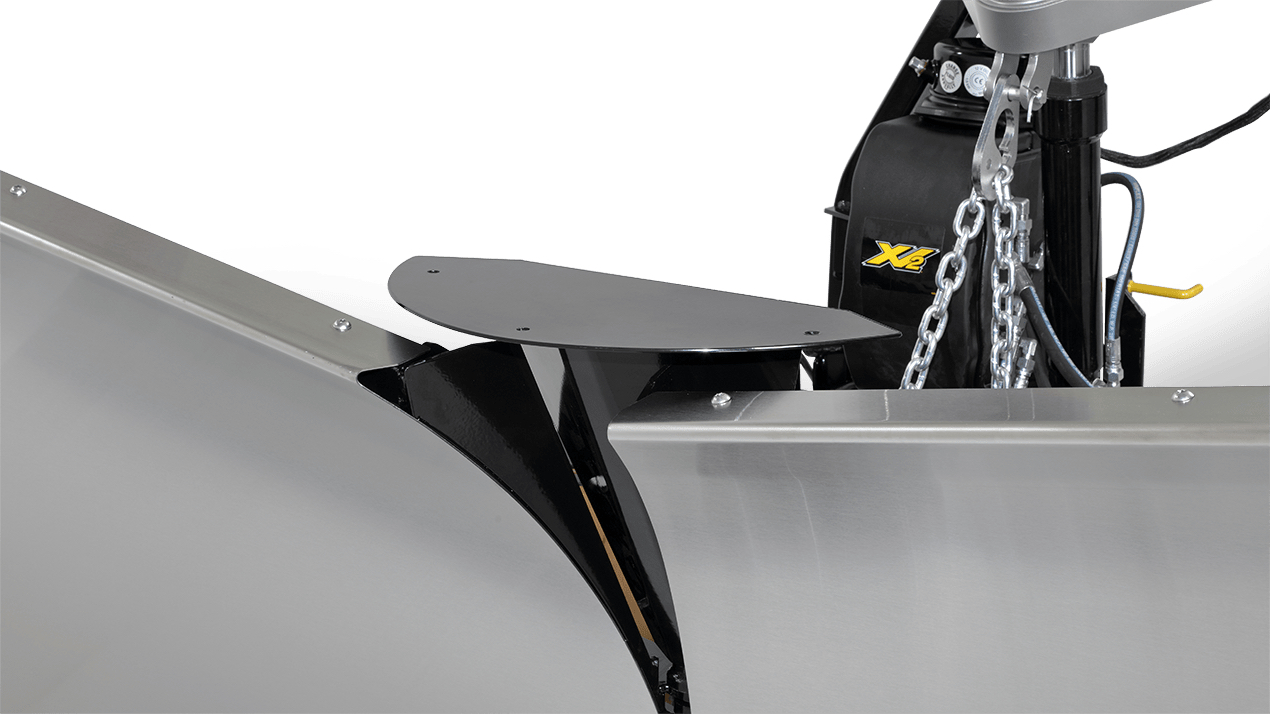

Center Snow Control

For exceptional snow containment in all positions, the XV2 v-plow has a center deflector designed to prevent snow from going over the top of the blade and the formed cutting edges reduce trailing snow.

Previous Next

10' 6" Heavy-Duty Features

The 10' 6" XV2 v-plow model comes standard with specific heavy-duty features.

Blade Construction: Thicker moldboards and a more robust base angle with additional hinge points.

Heavy-Duty T-Frame: Features solid, one-piece construction from front to back and an oscillating pivot bar.

Standard Blade Angle Stops: Made of reinforced 3/16" high-strength steel tube, the blade stops reduce stress and wear on the blade.

Standard Curb Guards: Constructed of abrasion-resistant material and designed to fit tight to the blade, the curb guards protect the outer edge of the plow from wear when plowing along sidewalks and curbs.

UNIVERSAL FEATURES

INTENSIFIRE Headlamps

Available in both LED and Dual-Halogen models, INTENSIFIRE headlamps are engineered and tested for maximum light output, performance and durability to keep you ahead of the next storm.


LED Headlamps
Learn More


Dual-Halogen Headlamps
Learn More

Minute Mount® 2 Snowplow Mounting System

The reliable, mechanical attachment design of the Minute Mount® 2 snowplow mounting system allows for easy hook-up with no tools required and no electrical switches to fail and leave you struggling out in the cold.

Learn More

Chain Lift Design

The FISHER® chain lift design offers a wide range of performance and reliability advantages over a direct lift system.

Learn More

FLEET FLEX Electrical System

With the FISHER® FLEET FLEX Electrical System, you have true fleet interchangeability. Unlike other manufacturers who require a different control system for different plows, the FISHER FLEET FLEX system lets you operate any FISHER Minute Mount® 2 plow on any truck with the same Fish-Stik® hand-held or joystick control.

Learn More

SECURITY GUARD Anti-Theft System

The exclusive SECURITY GUARD anti-theft system is a safe and secure way to electronically lock your snow plow whenever it is detached from your truck.

Learn More

Universal Control Options

Choose between the ergonomic Fish-Stik® hand-held control or the dash-mounted joystick control based on your preference. Both feature automatic shutoff, backlit buttons for night operation, and LED lights which indicate "power" and "float" mode.

Additional features include programmable "soft-stop," "one-touch" float, built-in SECURITY GUARD Anti-Theft System, and plug-in connector for easy removal.

Learn More

STORM GUARD Baked-On Powder Coat

The industry’s best protection against wear and rust, the STORM GUARD baked-on powder coat with epoxy primer is standard on all FISHER® snow plows.

Learn More

Isolation Module

An underhood module transfers lights from vehicle to plow automatically and improves system reliability by using plug 'n play, sealed electrical connections that comply with OEM requirements. Isolating the plow's electrical system from the vehicle's prevents the potential of electrical system damage in the event of a shorted circuit.

Pre-Punched Blades for Accessories

The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

FEATURED ACCESSORIES

WING EXTENSIONS

Expand the carrying capacity of your XV2 snow plow by adding a pair of genuine FISHER® extension wings. These extension wings feature durable poly cutting edges which also function as a trip mechanism in the event that an obstruction is encountered, the kit also includes a pair of blade stops for increased confidence while moving massive amounts of snow. Wings extend at a 60° angle, increasing the effective plowing width by 21". (Not available for 7' 6" and 10' 6" blades)

SHOE KIT

Ideal for dirt or crushed stone road surfaces, a shoe kit will provide you with the ability to adjust the scraping height of the blade. Genuine FISHER® shoes are made of cast iron for maximum longevity and durability. Shoe kits include two shoes and all mounting hardware for easy installation. (The shoe kit is not compatible with the use of a back drag edge.)

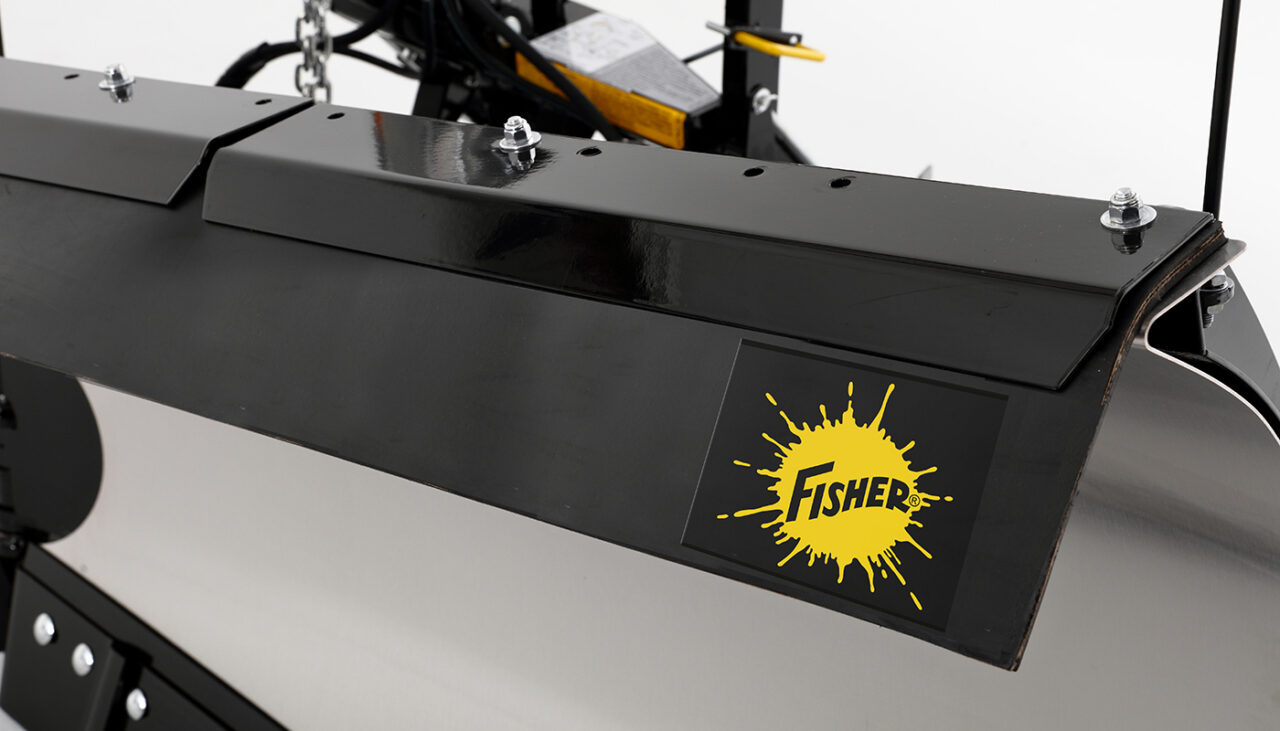

DEFLECTOR - RUBBER - 10"

Dress up your blade and improve functionality with a genuine FISHER® rubber deflector. Made from 2-ply heavy-duty rubber and accented with the FISHER logo, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.

DEFLECTOR - RUBBER - 18"

Dress up your blade and improve functionality with a genuine FISHER® rubber deflector. Made from 2-ply heavy-duty rubber and accented with the FISHER logo, this easy-to-install Rubber Deflector Kit will provide improved visibility by deflecting snow forward instead of onto your windshield.

HIGH WEAR SHOE KIT

Improve blade float or reduce cutting edge wear rates with the new High Wear Shoe Kit. Composed of wear resistant AR400 material, these kits are less brittle, offer better wear rates than cast iron and are designed with aggressive municipal and commercial plowing applications in mind.

CUTTING EDGE - POLY

Sensitive surfaces found in many residential and commercial applications require a more forgiving approach. Reduce the risk of property damage with Poly Cutting Edge Kits for the 8' 6", 9' 6", and 10' 6" XV2.

CUTTING EDGE - 1/2" STEEL

Keep your blade at the top of its game by installing a genuine FISHER® cutting edge. Made of tough high carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment. Hardware and center edges included.

CUTTING EDGE - 3/8" STEEL

Keep your blade at the top of its game by installing a genuine FISHER® cutting edge. Made of tough high carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment. Hardware and center edges included.

CUTTING EDGE - 5/8" STEEL

Keep your blade at the top of its game by installing a genuine FISHER® cutting edge. Made of tough high carbon steel, a cutting edge will increase wear resistance and restore your worn base angle to the proper geometry which is vital to protect you and your equipment. Hardware and center edges included.

CUTTING EDGE - CARBIDE

Abrasive surfaces and increased plowing speeds, often found in municipal and commercial applications, can increase the wear rate of standard steel cutting edges. Combat high replacement cycles with FISHER Carbide Accessory Cutting Edge Kits for the 8' 6", 9' 6", and 10' 6" XV2.

CURB WEAR KIT

Curbing can come out of nowhere sometimes. Protect your blade with a pair of genuine FISHER® curb guards. Constructed of abrasion-resistant material and designed to fit tight to the blade, these curb guards will allow you to plow along curbs with confidence and precision, without damaging your blade.

CURB GUARD KIT - CAST IRON

Curbing can seemingly come out of nowhere sometimes; protect your blade with a pair of genuine curb guards from FISHER®. These simple-to-install curb guards are made of cast iron for ultimate wear-resistance, and also feature a rounded profile which reduces damage to curbing as well as the blade.

BACK DRAG EDGE KIT

Achieve cleaner results and increased efficiency with a genuine back drag edge from FISHER®. Made from 1/4 inch abrasion-resistant steel and custom fit to your blade, this back drag edge will improve results by providing a clean scrape while back dragging. (The back drag edge is not compatible with the use of a shoe kit.)

BLADE STOP KIT

Beef up your blade and prepare for extreme plowing conditions with genuine FISHER® Blade Stops, designed to transfer extreme impacts throughout the blade's structure and reduce stress on the hydraulic rams. This kit comes with all of the necessary hardware and instructions for easy installation.

COMMERCIAL BLADE GUIDE KITS

Commercial Blade Guides are made from durable and highly visible fluorescent orange material and feature FISHER® branded reflective tape. Available in 24" or 36" lengths, these blade guides provide improved visibility and enhance your ability see the position of your blade.

CONTROL CUP HOLDER MOUNT

The Control Cup Holder Mount is designed to fit firmly in most vehicle cup holders. It's a genuine, factory-tough accessory specifically engineered to securely hold FISHER® hand-held or joystick controls and all types of smart phone devices (not included with mount). This flexible gooseneck mount has a 360-degree rotation and ensures optimal, customizable positioning.

FLEX ARM KIT

This quick-release, flexible control mount adjusts into any position. The magnetic base allows for easy removal with no mounting holes in your dash. Can be used with most plow and spreader controls. Base plate included

PLOW PARKA

This heavy-duty FISHER® branded nylon cover protects electrical and hydraulic systems and includes elastic sewn into the bottom for a tight, weather-resistant fit.

FREEZE GUARD GREASE

Specially formulated to protect moving components in arctic mining conditions, this grease is ideal for bearings, hinges and pivot bolts on snow and ice control equipment. The custom formula maintains viscosity from -40 up to 300 degrees, and military-grade, corrosion-prevention additives protect equipment from corrosion without harmful environmental impact. FREEZE GUARD Grease is available in cartridges, pails, totes and drums.

SPECIFICATIONS

Print
Models 7' 6" SS 8' 6" PC or SS 9' 6" PC or SS 10' 6" PC or SS
Blade Width 7' 6" 2.29 m 8' 6" 2.59 m 9' 6" 2.90 m 10' 6" 3.20 m
Blade Height 31" at Center
37" at End
78.74 cm at Center
93.98 cm at End
31" at Center
38" at End
78.74 cm at Center
96.52 cm at End
31" at Center
39" at End
78.74 cm at Center
99.06 cm at End
35" at Center
45" at End
88.90 cm at Center
114.30 cm at End
Blade Gauge 14 1.98 mm 14 1.98 mm 14 1.98 mm 11 PC
12 SS
3.05 mm PC
2.66 mm SS
Trip Springs 4 4 4 4 6 6 6 6
Ribs 12 12 12 12 12 12 12 12
Lift Cylinder 1 ¾" x 10" 4.44 cm x 25.40 cm 1 ¾" x 10" 4.44 cm x 25.40 cm 1 ¾" x 10" 4.44 cm x 25.40 cm 1 ¾" x 10" 4.44 cm x 25.40 cm
Angling Rams 1 ¾" x 11" 4.44 cm x 27.94 cm 1 ¾" x 11" 4.44 cm x 27.94 cm 1 ¾" x 11" 4.44 cm x 27.94 cm 2" x 11" 5.08 cm x 27.94 cm
Plowing Width 6' 7" Full Angle
6' 4" Scoop
6' 10" Full V
2.01 m Full Angle
1.93 m Scoop
2.08 m Full V
7' 5" Full Angle
7' 2" Scoop
7' 8" Full V
2.26 m Full Angle
2.18 m Scoop
2.34 m Full V
8' 6" Full Angle
8' 2" Scoop
8' 7" Full V
2.59 m Full Angle
2.49 m Scoop
2.62 m Full V
9' 9" Full Angle
9' 7" Scoop
9' 11" Full V
2.97 m Full Angle
2.92 m Scoop
3.02 m Full V
Approx. Weight* 914 lb 414 kg 957 lb 434 kg 1,044 lb 473 kg 1,222 lb 554 kg
Cutting Edge ⅜" x 6"
½" x 6"**
0.95 cm x 15.24 cm
1.27 cm x 15.24 cm**
⅜" x 6"
½" x 6"**
0.95 cm x 15.24 cm
1.27 cm x 15.24 cm**
½" x 6" 1.27 cm x 15.24 cm ½" x 6" 1.27 cm x 15.24 cm
Mount Type Minute Mount® 2 Minute Mount® 2 Minute Mount® 2 Minute Mount® 2 Minute Mount® 2 Minute Mount® 2 Minute Mount® 2 Minute Mount® 2

PC = Powder Coated Steel
SS = Stainless Steel
*Does not include vehicle mount. Please refer to the eMatch program for specific vehicle applications.
** Optional accessory
